Name: IPG High Power 12KW 12000W YLS12000RI Fiber Laser Source for CNC Metal Fiber Laser Cutting Machine
Brand: TAIYI
Price: 1 USD

Brand Name : TAIYI

Model Number : YLS-12000-RI

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1

Price : Contact us for the price

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 500 pieces per month

Delivery Time : 5-8 work days

Packaging Details : Export standard packing

Condition : New

Application : Fiber Laser Cutting Machine

Laser type : Fiber Laser

Wavelength : 1070nm

Brand : IPG

power : 12000W

Contact Now

IPG High Power 12KW 12000W YLS-12000-RI Fiber Laser Source for CNC Metal Fiber Laser Cutting Machine

1. Optical characteristics

N	Characteristics	Test conditions	Symbol	Min.	Typ.	Max.	Unit
1	Operation Mode			CW / Modulated
2	Polarization			Random
3	Nominal Output Power*		Pnom	12			kW
4	Output Power Tuning Range, lower limit**	Relative to Pnom			5		%
5	Output Power Tuning Range, upper limit	Relative to Pnom		100		105	%
6	Emission Wavelength	Output power: 12 kW	λ	1068	1070	1080	nm
7	Emission Linewidth		Δλ		5	8	nm
8	Switching ON/OFF Time				30	50	μs
9	Output Power Modulation Rate					10	kHz
10	Output Power Instability	Output power: 12 kW Time interval: 1 hour (T=Constant)			±1	±2	%
11	Red Guide Laser Power				0.4	0.5	mW

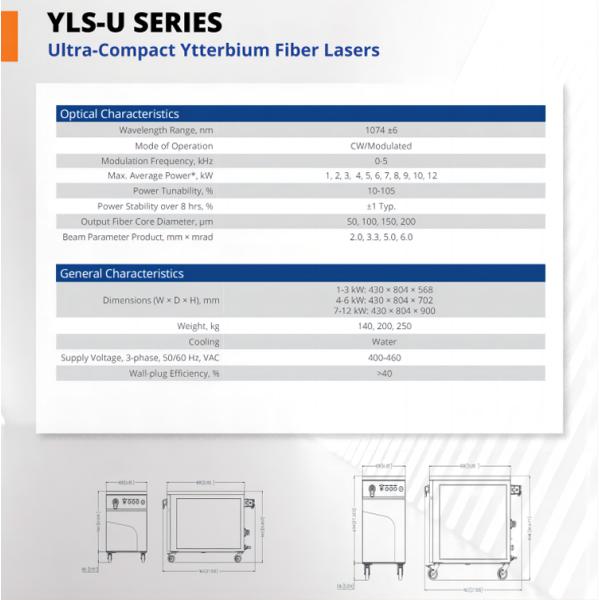

External layout

IPG High Power 12KW 12000W YLS-12000-RI Fiber Laser Source for CNC Metal Fiber Laser Cutting Machine
